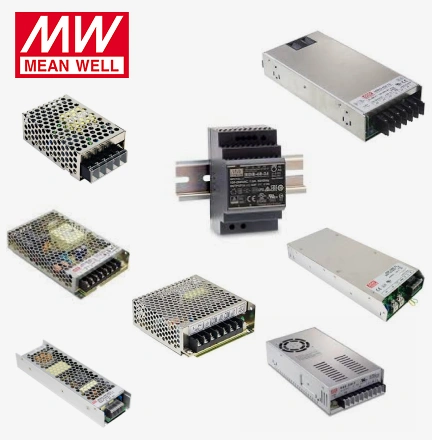

MEAN WELL is a globally recognized brand known for manufacturing high-quality Switch Mode Power Supplies (SMPS). MEAN WELL products are widely used in industrial and automation applications due to their reliability, efficiency, and long service life.
LRS Series
Wattage : 35W~1200W
Features :
- Non-PFC, most economical models
- Ultra compact and 1U low profile
- 300VAC input surge
- No load power consumption: 0.2W~0.75W
- 5G vibration, 70℃ operation
- Operating altitude up to 5000 meters
- Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
UHP Series
Wattage : 200W~2500W
Features :
- Slim and Low profile
- Fanless design, free air convection
- Built-in active PFC function
- High voltage output available for HV type
- DC OK active signal and redundant function(option)
- Operating altitude up to 5000 meter
- LED indicator for power on
NSP Series
Wattage : 275W~3200W
Features :
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/2-16/61010-1, Energy converter 62477-1)
- -40~85oC wide range operation temperature (>+60oC derating), except NSP-1600/ 3200 series
- High voltage output available for HV type
- Extremely low leakage current<350µA, 2 x MOPP, suitable for BF medical applications (except NSP-1600/ 3200 series)
- Conformal coating
- 5 years warranty
RSP-75~500 Series
Wattage : 75W~500W
Features :
- Built-in active PFC function
- 1U Low profile with active PFC function: 75W~320W: 30 mm, 500W: 40.5 mm
- Built-in constant current limiting circuit (RSP-75/100/150)
- Built-in remote ON/OFF control (RSP-75/100/150/500)
- Built-in remote sense (RSP-500 only)
HRP Series
Wattage : 75W~1000W
Features :
- Built-in active PFC function
- High efficiency, no load power consumption <0.5W~0.75W
- 5 years warranty
PSP / QP Series
Wattage : 150W~1000W
Features :
- PSP series: square housing, QP series: multiple outputs
- Built-in active PFC function
- Full range input, complete functions
RSP-750~3000 Series
Wattage : 750W~3000W
Features :
- Programmable high power with active PFC function
- Output voltage programmable
- Constant current level Icc programmable (RSP-750/1600 only)
- 1U low profile (41mm) : RSP-750/ 1000/ 1600/ 2000, 2U profile : RSP-1500/ 2400/ 3000
- Built-in current sharing (except RSP-750)
- 5 years warranty
XDR-E Series
Wattage : 75W~960W
Features :
- 85~264Vac input range
- Global certificates in multi-fields: CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1)
- Ultra slim width: 30~96mm (by model)
- High efficiency up to 96% and no load power dissipation <1W~3.6W (by model)
- Current sharing Up to 3840W for parallel use (XDR-480E/ 960E only)
- Over voltage category III (OVC III)
- -40~+70oC wide range operation temperature (>+50oC derating)
- Can be installed on DIN Rail TS-35/7.5 or 15
- 3 years warranty
XDR Series
Wattage
Features :
- 85~305Vac input with PFC (277Vac available)
- Global certificates in multi-fields: ITE 62368-1, Industrial 61558-1/-2-16, 61010 & Marine DNV, SEMI47, CID2 HazLoc approved
- Ultra slim width: 30~96mm (by model)
- Supports 200% peak power and 600% peak current
- Built-in MODBus communication interface (XDR-240~960 Series)
- Over voltage category III (OVC III)
- Supports parallel operation up to 3840W (XDR-240~960 series)
- -40~+85oC wide range operation temperature (> +60oC derating)
- 5 years warranty
XTR Series
Wattage :- 240W~960W
Features :
- Three-phase 320 ~ 600Vac wide input range, support dual-phase operation
- Ultra-low inrush current <10A
- Global certificates in multi-fields: CB / TUV / UL / RCM / BSMI / CCC / BIS / EAC / CE / UKCA (62368-1 + 61010-1 + 61558-1), and HazLoc C1D2 / marine DNV / SEMI 47
- Ultra slim design: 48~96mm (by model)
- Internal PCB conformal coating protection
- Can be installed on DIN Rail TS-35/7.5 or 15
- High efficiency up to 96% and no load power dissipation <2.5W~3.1W (by model)
- 150~200% peak power capability
- Current sharing up to 3840W for parallel use (XTR-240 by request)
- Over voltage category III (OVC III)
- -40~+85℃ wide range operation temperature (>+60℃ derating)
- Various terminal blocks: screw-type, push-in, lever-type
- 5 years warranty
HDR Series
Wattage :- 15W~150W
Features :
- Plastic case, step shape
- 1∅, full range input
- Compact size, 1SU~6SU width (DIN EN43880)
- Isolation class II
- DC output voltage adjustable
- No load power consumption <0.3W
- Assemble on industrial rail TS-35 / 7.5 or 15
- Suitable for building automation and control of household appliance
MDR Series
Wattage :- 10W~96W
Features :
- Plastic case, ultra slim
- 1∅, full range input
- No load power consumption<0.75W~1W
- Assemble on industrial rail TS-35 / 7.5 or 15
- Built-in active PFC function
- DC OK signal output (MDR-10/20)
- DC OK relay contact (MDR-40/60/100)
- Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
DRA Series
Wattage :- 40W~60W
Features :
- Plastic case
- 1∅, full range input
- Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance
- EMC EN55022 class A
- Assemble on industrial rail TS-35 / 7.5 or 15
- Suitable for machine vision inspection system and plant cultivation applications
EDR Series
Wattage :- 75W~150W
Features :
- Metal case, low cost
- 1∅, full range input
- Slim size, model width: 32 ~ 40mm
- EMC EN55022 class A
- Assemble on industrial rail TS-35 / 7.5 or 15
- 2 years warranty
NDR Series
Wattage :- 75W~480W
Features :
- Metal case, economical models
- 1∅, 90~264Vac, full range input
- Slim size, model width: 32 ~ 85.5mm
- EMC EN55022 class B
- Assemble on industrial rail TS-35 / 7.5 or 15
- 3 years warranty
SDR Series
Wattage :- 75W~960W
Features :
- Metal case, slim size
- 1∅, full range input (230VAC only for SDR-960)
- 94% high efficiency and complete functions
- 130%~150% peak load capability by models
- Built-in active PFC function (except SDR-75)
- Assemble on industrial rail TS-35 / 7.5 or 15
- Built-in DC OK relay contact (except SDR-75)
- Current sharing function (SDR-480P/960)
TDR Series
Wattage :- 240W~960W
Features :
- Metal case, slim size
- 3∅, 340~550VAC input
- High efficiency up to 94.5%
- Built-in active PFC function
- Assemble on industrial rail TS-35 / 7.5 or 15
- Built-in DC OK relay contact
WDR Series
Wattage :- 60W~480W
Features :
- Metal case, slim size
- 1∅ and 2∅ , 180~550VAC wide input
- High efficiency up to 93%
- Built-in active PFC function (240W & 480W)
- Assemble on industrial rail TS-35 / 7.5 or 15
- Built-in DC OK relay contact
Peripheral
Wattage :- NA
Features :
- 20A redundant module
- 20A/40A DIN Rail Buffer Module
- 20A/40A DC UPS module
- AC Inrush Current Limiter
